A one-degree temperature error can noticeably change a Brix reading, which may cost a craft brewery hundreds of dollars per batch. This highlights the importance of mastering the use of refractometers for those in homebrewing, winemaking, coffee roasting, and laboratory settings.
Refractometer Homebrew
This practical guide explains what refractometers do, how they function, and how to apply them correctly. It includes step-by-step guidance for handheld and digital models, plus tips on choosing the right refractometer for your needs. It also addresses the process of purchasing refractometers and where to find them, including from established vendors like Installation Parts Supply (InstallationPartsSupply.com), a factory distributor and industrial supplier serving the beverage industry and OEMs for over two decades.
It explains how to get Brix and Specific Gravity readings, run calibration checks, and manage temperature compensation and sample preparation. Whether you use a field-ready model or a digital benchtop unit, this section helps you take accurate and repeatable measurements with confidence.
Main Takeaways
- Even small temperature shifts can change Brix results, making temperature control important.
- Using a refractometer applies across brewing, winemaking, honey testing, and salinity checks.
- Handheld and digital refractometers fit different tasks, so match the tool to your workflow.
- Choose a digital refractometer if you need fast readings, saved data, and system integration.
- Buying refractometer products from reputable suppliers like Installation Parts Supply ensures access to commercial-grade parts and support.

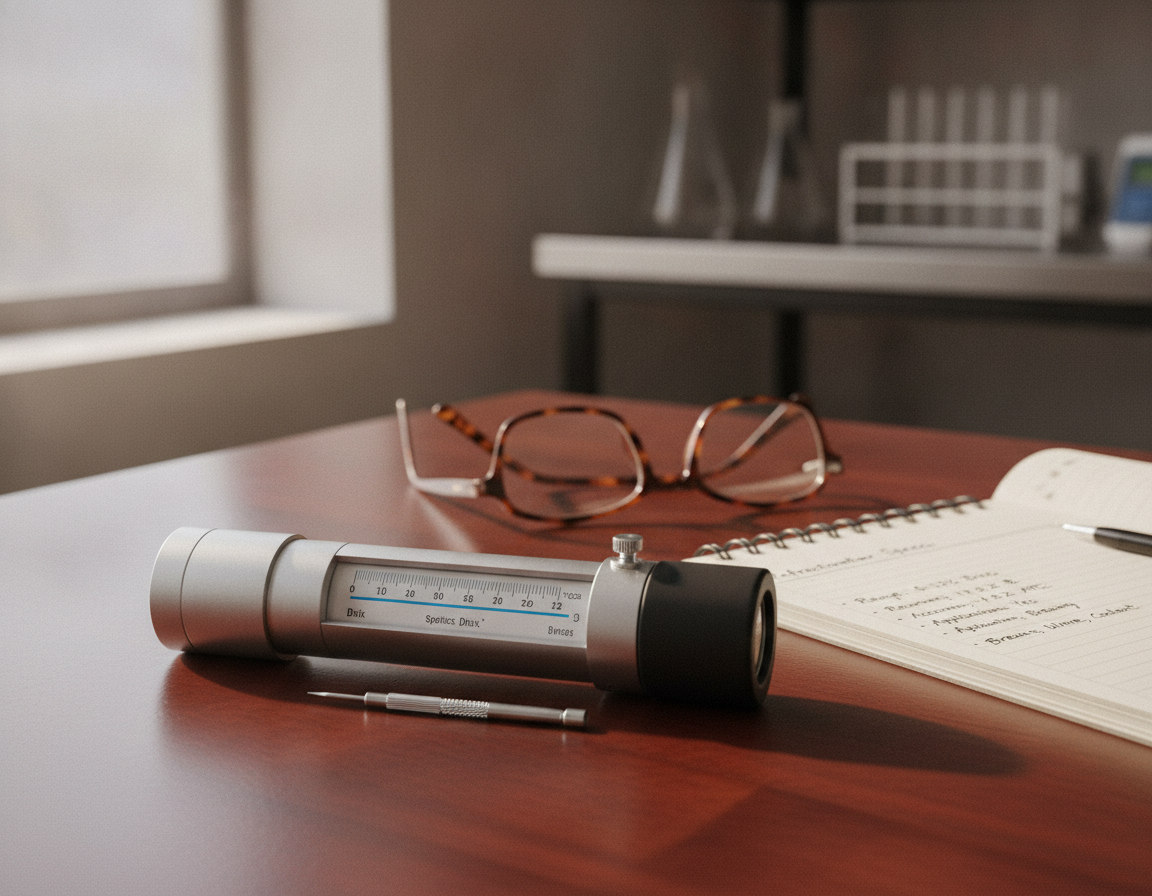

Automated Refractometers
How A Refractometer Works And What It Measures
A refractometer measures the bending of light as it transitions from air into a sample. This light shift reveals the refractive index, which helps show the sample’s makeup and concentration. Understanding how refractometers work helps you choose the right tool and avoid common mistakes.
Core Definition And Principle
The instrument relies on Snell’s Law and the critical angle. When light enters the sample, it refracts, creating a boundary between light and dark. This visible boundary relates to a particular refractive index reading. Factors such as temperature and wavelength can affect readings, so many instruments require compensation or temperature control.
Common Refractometer Units And Scales
Refractometers display refractive index directly or convert it to units specific to various applications. For example, Brix (°Bx) measures sucrose concentration in samples such as fruit, juice, and honey. In brewing and winemaking, Plato (°P), Specific Gravity (SG), Oechsle (°Oe), and Baumé (B°) are common scales. Salinity is commonly shown as PPT, ‰, or percent.
The available outputs may include RI, % sugar, °Bx, °P, SG, and salinity. Users often use conversion tables or calculators to verify results. It is best to choose a scale that matches the sample type and expected range.
Types Of Refractometers And Common Uses
Handheld optical pocket models are designed for portability, requiring only a few drops of sample. These tools use an internal prism and a reticle viewed through magnification. Professionals and hobbyists alike find them invaluable in vineyards, apiaries, and homebrewing environments.
Digital models rely on LED illumination and a sensor to show readings on a display. Many include automatic temperature correction and make data recording easier. Benchtop Abbe refractometers, on the other hand, excel in laboratory settings where high accuracy and broad wavelength control are critical.
Automatic and inline refractometers cater to food processing and industrial applications, facilitating high-throughput or continuous monitoring. Specialized portable optical models are available for applications such as coolants and emulsions. Dual-scale instruments that show Brix and SG or Plato are convenient for brewing.
| Refractometer Type | Usual Application | Primary Benefit | Typical Range |
|---|---|---|---|
| Pocket optical | Field checks: vineyards, apiaries, homebrew | Few drops needed, easy to carry | Up to 32 °Bx |
| Handheld digital | Quick lab and field checks | Clear display, temperature correction | Up to 85 °Bx, model-dependent |
| Abbe Benchtop | Analytical labs and quality control | Strong precision, wavelength control | Wide refractive index and concentration ranges |
| Automatic Or Inline | Food processing, industrial lines | Continuous, high-throughput | Ranges matched to the process |
| Fluid-focused portable optical | Coolants, glycol, emulsions | Application-specific concentration testing | Depends on application |
Selecting The Right Refractometer For Your Needs
When choosing a refractometer, start with the exact task you need it to perform. A handheld optical model works well for fruit assessments, beekeeping, and fast homebrew checks. On the other hand, a digital handheld is more suitable for coffee roasting and craft brewing due to its rapid readout capabilities. For labs, production lines, and glycol monitoring, benchtop or inline models are often preferred for precision and repeatability.
Match device type to application
For homebrewers measuring wort and estimating ABV, models showing °Bx and SG or Plato are a practical choice. Pairing a refractometer with a hydrometer can help with post-fermentation calculations. In contrast, professional breweries often favor benchtop digital units or inline refractometers for continuous monitoring and seamless integration into control systems.
Honey and syrups require a high-Brix refractometer, usually in the 60 to 90 °Bx range. Coffee enthusiasts often prefer high-resolution digital handhelds for roast development and extraction tracking. For field testing plants and fruit, light optical or battery-powered handheld units make Brix checks fast and reliable.
Main features to compare
When choosing between models, compare measurement range and units including Brix, Plato, SG, and refractive index. Automatic Temperature Compensation (ATC) and calibration type, whether mechanical or digital, also matter. Accuracy, repeatability, and sample volume help show how reliable the device will be in real use.
Durability is important when the tool will be used in breweries, farms, or field conditions. Choosing between glass and sapphire prisms affects scratch resistance and cleaning convenience. For digital and automatic models, USB, RS232, or network connections can be important for data logging. Features like quick calibration and low sample volume can significantly streamline routine tasks.
Budget and cost considerations
Handheld optical models usually cost less, require no power, and work well for budget-conscious users. Handheld digital models fall in the mid-range, providing convenience through automatic correction and easy-to-read displays.
Benchtop, automatic, and inline units, while more expensive, offer superior accuracy, throughput, and integration, making them valuable in labs and production environments. Total cost should include calibration standards, spare prisms, and installation parts such as tubing, clamps, and fittings. Comparing prices across reputable brands can help find the best balance of features and value.
| Application | Suggested Type | Important Features | Usual Price Range |
|---|---|---|---|
| Fruit fields, plants, beekeeping | Optical handheld or digital handheld | Brix range 0-35, low sample volume, rugged | $30 to $250 |
| Craft beer and homebrew | Handheld dual-scale or benchtop digital | °Bx, SG or Plato, ATC, simple calibration | About $50 to $1,200 |
| Professional brewing and winery labs | Benchtop digital or inline unit | Strong accuracy, logging, integration | $1,000-$10,000+ |
| Specialty coffee and roasting | Digital handheld | Fine resolution, fast readout, ATC | $100-$600 |
| Honey and high-sugar samples | High-Brix handheld or benchtop | Range up to 90 °Bx, durable prism | About $80 to $2,000 |
Preparing Samples And The Workspace For Accurate Readings
A clean, calm workspace and careful sample preparation are essential for dependable results. Small, consistent setup habits can reduce errors during refractometer testing. This helps produce more consistent measurements. Adhere to a concise checklist before initiating the process.
Cleaning And Sample Handling
Keep the prism free of residue by using distilled or deionized water and a lint-free cloth. Wipe the prism carefully after every use to reduce contamination and protect the instrument. For stubborn residue, use the solvent recommended by the manufacturer.
When testing thick substances such as honey or syrup, warm them slightly to improve flow. This helps the sample spread evenly. Use pipettes, disposable droppers, or syringes for accurate placement and less spillage. Eliminate any bubbles and foam before recording the reading.
Managing Temperature Control And Compensation
The refractive index is temperature-dependent, necessitating samples and the refractometer to be at ambient temperature. Many digital models automatically adjust for temperature variations. For critical work, confirm that this function is active and accurate.
For precise endeavors, complement refractometer readings with a reliable thermometer. Use the manufacturer’s calibration guidance when operating conditions differ from the advised range. Apply correction factors when needed to account for temperature differences.
Sample Volume And Even Mixing
Handheld models usually need only a few drops, while benchtop devices may require larger samples. For suspensions and emulsions, mix thoroughly to reduce light scattering from solids that can distort results.
For fermenting samples, clarify or filter them so refractometer and hydrometer readings align more closely. Careful sample preparation, including mixing, removing impurities, and matching temperature, improves accuracy and limits repeated tests.
Using A Handheld Refractometer Step By Step
Accurate readings are easier when refractometer use follows the same routine each time. This guide covers preparation, application, and interpretation of results for various applications. It helps produce reliable readings with handheld or pocket refractometers.
Getting the instrument ready
Clean the prism using distilled water and a lint-free tissue. Check the glass for scratches or residue that could affect the refractometer reading.
Calibrate before use. For analog models, add distilled water to the prism and adjust the calibration screw until the scale reads 0 °Bx or the specified RI. For digital units, follow the device routine to set zero and confirm ATC is working.
Check the light source and eyepiece focus on optical handheld refractometers. Proper light makes repeatable refractometer readings easier.
Applying the sample and taking the reading
Apply a few drops so the liquid covers the prism without spilling over. On optical models, close the daylight plate to create a thin, even film and avoid trapped air.
For optical handheld refractometers, look through the eyepiece and adjust focus until the reticle is sharp. Align the shadow line with the scale and note the value.
For digital handheld units, add the sample and press the measurement button. Wait until the display stabilizes. Many pocket models automatically display a temperature-corrected result.
Recording and interpreting readings
Record both the measured value and the sample temperature. Note which scale you used, such as °Bx, SG or Plato, so results stay comparable over time.
For brewing, combine refractometer and hydrometer data or use manufacturer calculators to estimate ABV. Use the R-D approach: refractometer reading (°Bx) minus the D correction from SG conversions. If both tools are measured at the same temperature, most homebrew cases can achieve about ±0.5% ABV accuracy.
In food or quality control, compare readings to target specs or conversion charts. For honey and similar high-Brix products, rely on dense-syrup scales and tables to avoid mistakes.
Using Digital Refractometers And Automatic Models
In today’s laboratories and production environments, precision and consistency are essential. A digital refractometer offers swift data acquisition and minimizes human error. Choose a benchtop automatic refractometer for high-volume work or a portable digital refractometer for on-site checks.
Device Setup And Powering
Begin with the manufacturer’s instructions for powering the device, installing batteries, and warming up the unit. Use distilled water or certified solutions for calibration and confirm that Automatic Temperature Compensation is working.
Choose the units required for your work, including °Bx, Specific Gravity, or refractive index. For production-line automatic systems, configure pump rates, rinse cycles, and sample handling based on supplier guidance.
Automated Reading Process
Automated refractometers employ LED illumination and image sensors or diode arrays to detect the refractive boundary. Advanced algorithms then convert this signal into refractive index, applying necessary temperature corrections.
Many models support autosamplers or pumps for sequential sample loading, measurement, and rinsing. Inline automatic systems make continuous concentration monitoring possible. Make sure sample lines are clean and bubble-free to reduce measurement errors.
Configure sampling frequency and set alarm thresholds for out-of-spec values to prompt alerts. A portable digital refractometer can provide fast checks during automatic system troubleshooting.
Logging, Data Output, And Integration
Digital refractometers show immediate results. Export options often include USB, RS232, and Ethernet for data capture. Opt for units that timestamp readings and log temperature with each measurement.
Integrate data with LIMS or SCADA to support process control and quality documentation. Many prefer automatic refractometers with native export formats for streamlined data management.
| Function | Handheld Digital Refractometer | Benchtop Automatic Unit | Inline Automatic Unit |
|---|---|---|---|
| Typical use | Field testing and QC checks | Lab batches, high-volume QC | Continuous process monitoring |
| Calibration | Manual with distilled water | Scheduled automatic routines | Remote automated verification |
| Export options | Bluetooth or USB | USB, RS232, Ethernet | Ethernet, Modbus, and SCADA |
| Sample handling | Small cuvette or sample drops | Autosampler and pumps | Production lines with pumps |
| Best for | Mobile checks and vineyards | Beverage R&D and QC labs | Brewing, dairy, and syrup processing |
When installing a system, choose fittings and tubing that match supplier requirements for flow and pressure. A correctly configured digital Brix refractometer will provide rapid, verifiable results for both production and laboratory teams.
Refractometer Calibration And Validation
Reliable readings require consistent calibration and validation. Begin every session by checking calibration, recording results, and following manufacturer instructions. This habit improves refractometer accuracy and reduces troubleshooting time.
Calibration methods and standards
Distilled or deionized water serves as the primary zero-reference. The instrument should show 0 °Bx or the required refractive index. For multi-point calibration, use certified fluids with known Brix or refractive index values inside the device range.
Calibrate Brix readings and temperature checks
Temperature variations affect readings. Calibration at the recommended temperature or with Automatic Temperature Compensation is essential. Without ATC, apply manual corrections using the manufacturer’s tables.
Use calibration standards close to the Brix range you expect. Low-Brix solutions suit fruit juices, while high-Brix standards suit honey and syrups. Log the lot number and expiration date for every calibration standard.
Checking accuracy using reference materials
Periodic checks with reference materials and certified calibration fluids are necessary. For critical readings, compare results with a hydrometer or Abbe refractometer in a laboratory setting. This comparison supports refractometer validation and improves confidence in precise tasks.
In brewing and winemaking, combine refractometer readings with hydrometer Specific Gravity checks for ABV estimation. Use validated calculators or tables to resolve differences. Good technique and cross-checking can produce combined results near ±0.5% ABV accuracy.
Maintain a calibration log with dates, standard lot numbers, measured values, and adjustments. Discard and replace calibration fluids that are expired or contaminated. Regular documentation supports quality audits and proves ongoing refractometer calibration standard control.
Refractometer Use In Brewing, Winemaking And Beverages
Brewers, winemakers, and roasters use refractometers to measure sugar and soluble solids more efficiently. This section covers the practical application of refractometers for wort and must testing. It also looks at refractometer use in brewing, wine, cider, and coffee.
Wort measurement and ABV calculation
Refractometer readings are essential for tracking °Brix before fermentation begins. The refractive index changes with alcohol content, necessitating the use of a hydrometer SG or a correction formula for accurate ABV estimation. A common method uses the refractometer reading and hydrometer SG to calculate D = (SG – 1) × 1000, then applies R-D to reference tables. Keeping both samples at the same temperature helps reduce error.
Beer, wine, cider and coffee applications
Winemakers use refractometers to measure grape must in °Brix or degrees Oechsle, helping with harvest planning and sugar addition. Brewers use °P or °Bx readings before and after boiling, then monitor fermentation with corrected refractometer data. For cider production, Brix readings help estimate alcohol content and guide yeast and nutrient selection.
Specialty coffee professionals rely on refractometers to report TDS and extraction yield. For roasters and baristas, a coffee refractometer supports brew strength checks and recipe refinement. For beer and cider, a refractometer beer or beer refractometer facilitates quick field checks on tanks and kegs.
Homebrew and commercial contexts
Homebrewers often choose handheld or digital handheld models because they are simple to use. Commercial users may prefer benchtop or inline brewing refractometers for precision and data capture. For draft systems and soda lines, proper installation parts and regular maintenance help protect sample quality.
| Common Use | Measurement Unit | Suggested Instrument | Main Advantage |
|---|---|---|---|
| Gravity checks for homebrewing | °Brix / °P | handheld refractometer for home brewing | Low cost and quick readings |
| Professional brewery monitoring | °Bx with temperature compensation | digital benchtop brewing refractometer | Strong accuracy and data export |
| Winemaking harvest planning | Brix or Oechsle | portable brewing refractometer | Quick sampling in the vineyard |
| Cider making | °Bx | refractometer for brewing, stable temp | Predictable alcohol content |
| Specialty coffee testing | TDS and extraction yield | coffee refractometer | Better cup consistency and recipe control |
| Draft line checks | °Bx or solids percentage | beer refractometer for inline or handheld checks | Fast line and keg verification |
When choosing a refractometer for brewing, start with the exact measurement requirements. For homebrewing, a good refractometer should have clear scales and simple calibration. Coffee users should look for a refractometer with TDS reporting. For tanks and kegs, choose a durable beer refractometer suited to repeated checks.
Specialized Applications: Honey, Glycol, Plants And Salinity
Specialty refractometry covers many tasks, from measuring honey moisture to checking coolant levels and plant ripeness. The selection of the appropriate instrument and calibration range is critical for ensuring the reliability and consistency of measurements. Below are targeted tips and best practices for common specialized applications.
Measuring Syrups And Honey
Because honey commonly falls between 60 and 90 °Bx, testing it requires a high-Brix instrument. Using a syrup refractometer or honey-focused digital model with specific scales helps determine moisture content quickly and precisely. Slightly warm viscous samples and stir them well before measurement. Use supplier conversion charts to convert Brix values into moisture percentages and quality grades.
Measuring Glycol And Coolant Concentration
Effective concentration control in cooling systems is important. A digital glycol refractometer can measure ethylene or propylene glycol concentration as a percentage or freezing-point equivalent. Choose handheld models for fast spot checks and automatic units for continuous monitoring in HVAC systems. Use the manufacturer’s recommended calibration fluids for consistent results.
Plant, Juice And Salinity Measurements
Diverse applications in field and laboratory settings demand specific ranges. For plant analysis, a Brix refractometer typically spans 0-12 °Bx, aiding in the determination of soluble solids for optimal harvest timing. In juice and beverage processing, a refractometer for sugar content is indispensable for maintaining recipe consistency and quality control. Marine and food brine testing often requires a digital saltwater refractometer that measures PPT or percent salinity.
Always match the instrument range to the application and use the correct calibration fluid. Consult reputable suppliers and product pages for models and specifications before making a purchase to avoid errors and ensure traceability in measurements.
Maintenance, Troubleshooting And Extending Instrument Life
Maintaining a refractometer supports longer life and dependable performance. Simple inspections and minor adjustments after use can help avoid major problems. Below, we outline essential care steps, common issues, and when to seek professional repair or replacement.
Routine Maintenance Checklist
After each use, clean the prism with distilled water and a lint-free cloth. For stubborn residue, use mild isopropyl alcohol while following the manufacturer’s guidelines strictly.
Examine the prism for scratches or chips. Inspect seals and O-rings on inline and benchtop units so leaks and contamination are avoided.
Regular calibration with distilled water and certified standards is critical. Keep detailed calibration records with dates and results to track drift over time.
Replace batteries in portable models before they fail. Verify firmware and software updates on digital units to guarantee full functionality.
Common Issues And Fixes
A dirty, scratched, or bubble-covered prism can cause inconsistent readings. Cleaning, drying, and recalibrating the device can resolve this. Before measuring, confirm that the sample and instrument are at the same temperature.
An incorrect zero reading usually requires recalibration with distilled water. When the zero keeps moving, check optical surfaces and prism alignment for damage.
Digital error codes or a blank display indicate power or firmware problems. Reboot the unit, confirm stable power, and clean sensors. Refer to the manual for code definitions before attempting internal repairs.
Blocked sample lines, faulty pumps, and clogged filters commonly cause inline and automatic system problems. Remove air locks, verify rinse cycles, and inspect tubing for wear. Keeping spare refractometer parts available can reduce downtime.
When To Replace Or Repair
Handheld units should be replaced when prism damage cannot be repaired or calibration drift exceeds manufacturer specifications. Repairs rarely return a crushed or deeply scratched prism to its original condition.
For benchtop and automatic units, contact the manufacturer or an authorized service center for sensor replacement or factory recalibration. Compare repair estimates to the cost of a new instrument before authorizing work.
For system installations such as draft beer, soda, or RO setups, track the lifetime of fittings and tubing. If repairs cost nearly as much as a new unit or your measurement needs change, consider replacement. Maintain a stock of common refractometer parts and tubing for quick fixes and to preserve refractometer life.
| Item | Required Action | Maintenance Frequency | Impact On Life |
|---|---|---|---|
| Cleaning the prism | Clean with distilled water and lint-free wipe; use alcohol if needed | Every use | Prevents drift and surface damage |
| Calibration checks | Calibrate with distilled water and certified standards; keep a log | Weekly or per protocol | Preserves accuracy and instrument life |
| Seals and O-rings | Check and replace worn items | Every month for heavy use | Helps prevent leaks and internal damage |
| Power and firmware | Replace batteries and update firmware | As needed, with monthly checks | Ensures reliable digital operation |
| Inline tubing & fittings | Inspect, clean, and replace worn tubing and clamps | Monthly or per system schedule | Lowers downtime and reduces repair needs |
Buying Options And Professional Support For Commercial Use
Begin by matching the device to your operating needs. Refractometers are available from lab suppliers, beverage equipment distributors, and reputable online retailers. Compare accuracy, ATC, range, and connectivity before choosing a model. This helps ensure the device fits handheld testing, benchtop analysis, or inline monitoring.
For additional hardware, consider Installation Parts Supply. Installation Parts Supply, a factory-authorized distributor, offers a wide range of refractometers and brewery installation supplies. These include tubing, clamps, regulators, carbonators, and fittings. Such components are vital for maintaining sanitary flow and protecting sample integrity when integrating a commercial refractometer into a draft system.
When constructing a draft or direct-draw system, it’s critical to choose compatible components to avoid flow issues. Select draft beer installation parts that fit the taps, regulators, and dispensing lines in use. Correct part selection helps lower contamination risk and maintain consistent readings.
For inline sensing or data integration, work with experienced installers. Work with professional beverage equipment installers and factory-authorized distributors for system design, part selection, and compatibility checks. Their experience supports dependable commercial refractometer operation in production environments.
For complex setups, consult certified technicians. They are essential for integrating data logging to SCADA or LIMS, automated sampling, and ensuring regulatory traceability and calibration certification. Lab services may also validate procedures for ABV compliance and commercial labeling.
Refer to the table below for a comparison of common buying choices and support options when equipping a commercial beverage line.
| Buying Option | Best For | Common Support | Related Supplies |
|---|---|---|---|
| Lab suppliers including Ametek and Thermo Fisher | Benchtop accuracy and calibration requirements | Calibration fluids and technical documentation | Reference materials and calibration fluids |
| Beverage equipment distributors, local pro dealers | Bar and taproom integrated systems | On-site installation, parts matching | Carbonators, Taprite regulators, fittings |
| Specialty stores and online retailers | Digital and handheld tools for small labs | Reviews, returns, and customer support | Sample cups, handheld cases, cleaning kits |
| Factory-authorized distributors, Installation Parts Supply | OEM needs and commercial installations | OEM parts, factory components, warranty support | Commercial refractometers and brewery installation supplies |
| Certified lab services | Traceable calibration and regulatory compliance | Method validation and calibration certificates | Documentation, certified reference materials |
Conclusion
A refractometer offers quick, precise measurement of soluble solids, sugar content, salinity, and glycol concentration in many industries. This guide explained the fundamental principle of refractive index measurement. It showed why selecting the right instrument matters, from handheld models to benchtop, automatic, and inline units. For food and beverage users, understanding refractometer applications and choosing the right device is important. It helps prevent costly errors and supports consistent quality.
Accurate results depend on good sample preparation, temperature control, and regular calibration. Small-scale brewers and winemakers often benefit most from handheld or digital handheld refractometers. On the other hand, larger operations and those requiring continuous monitoring benefit from benchtop, automatic, or inline models. These models offer features such as data logging and integration for production-scale and compliance needs.
Where possible, combine refractometer readings with hydrometer checks, especially for brewing and winemaking ABV calculations. This practice enhances quality control by validating results. Keeping detailed calibration and maintenance records is also important. Working with trusted suppliers for parts and installation supports refractometer longevity and reliability. Following these guidelines helps produce consistent, reliable data in beverage and food settings.
